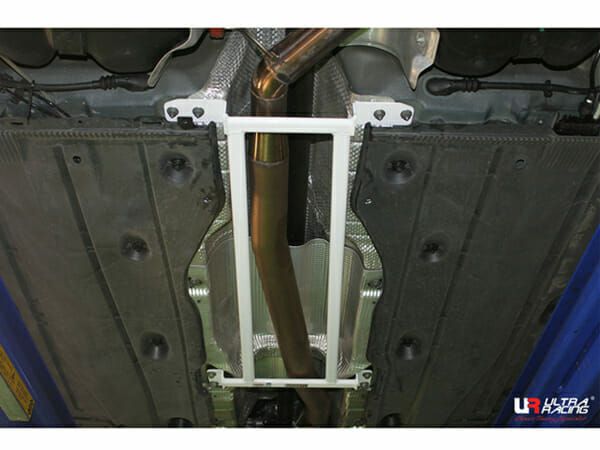

Ultra Racing - Audi A3 (TYP 8V) 2.0 TDI /VW Golf GTI MK7 2.0 TSI 13-20 UltraRacing 4-Point Mid Lower Brace (3611)

High Quality Materials

Ultra Racing meticulously choose each material to guarantee optimal performance and safety. Our brackets are crafted from steel plates measuring 4mm to 5mm in thickness, while the hollow steel tubes and oval tubes range from 1.2mm to 1.6mm in thickness. These materials are thoughtfully selected to ensure that our bars maintain rigidity and strength, preserving consistent geometry at all times, while also being designed to crumple during an impact for safety reasons. Rest assured, all our raw materials undergo rigorous testing, yielding satisfactory results.

Race Proven

Ultra Racing Motorsport Division carries the task of bringing Ultra Racing’s products into track and motorsport event in order to further enhance all products and accumulate feedback from event like track racing, autocross and drifting competition.
Being the proud chassis tuning partner of Federation D & Tengku Djan, Team GoodYear Racing, and Team Toyo, Ultra Racing’s able to show its existence in worldwide motorsport event.

The chassis of the car is the part which experiences the most of the abuse from the driver. It is particularly due to the weight transfer of the vehicle body during fast cornering, hard braking or hard acceleration.

In some instances, the weight transfer during cornering may cause one side of the vehicle to experience as much as 3 times more force than the other side of the vehicle, causing enormous chassis flex/ vehicle body deformity and twist, consequently causing tires to lose grip.

Deformity and twisting of the vehicle chassis during cornering may cause negative handling traits such as understeering and oversteering.

Before & After Fitting A Side Bar

Before: Part of the shock of impact transfer to the chassis, causing wheel house and lower arm deforming.

After: Equiped with the Ultra Racing’s strut bar and lower arm bar, both side shock of impact will be neutralised.

Ultra Racing Strut Braces are designed for direct fitment and require no modifications, making them easy to install. These braces provide a straightforward suspension enhancement that significantly improves chassis stiffness, steering feedback, road handling, and can even reduce tire wear.

Strut braces achieve these improvements by reducing flex in suspension mounting points, helping to maintain precise geometry and stability. They offer competition-level performance suitable for everyday use. Moreover, not only do they deliver handling benefits, but they also add an aesthetic touch under the car's hood.

With an extensive range of applications, these braces are available in both steel and alloy options, and can be installed on either the front or rear of the vehicle, depending on the specific application.

• Item: Middle Lower Bar / Middle Member Brace

• Specification: 4 Points
• Accessory: N/A

• Installation Method: Bolt on

• Dimension: 97cm x 44cm x 5cm

• Weight: 2.5kg

Specifications:
