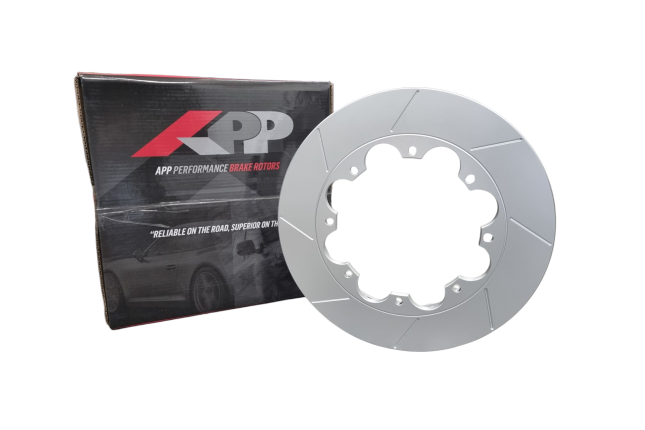

APP Replacement Disc - 309x32mm Slotted Right
APP Replacement Disc - 309x32mm Slotted Right
SKU:APP.28.001.1112

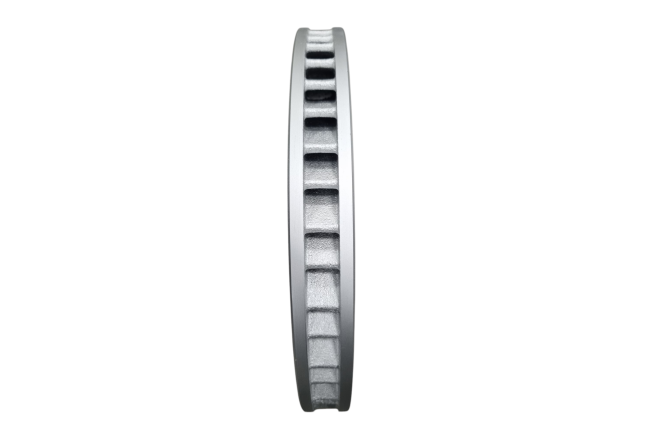

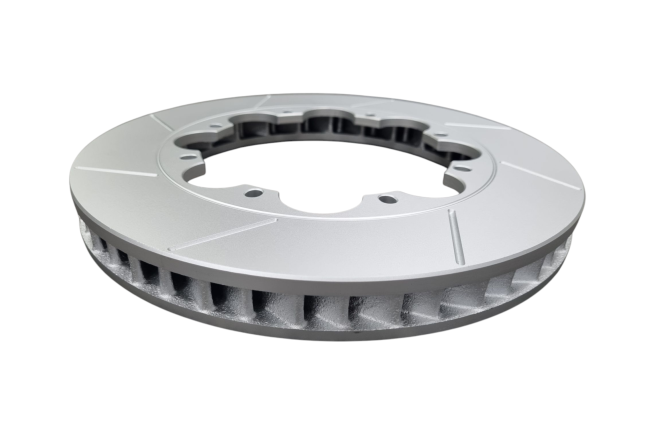

Replacement Discs are engineered for superior performance, crafted from G4000 iron, featuring a straight-slotted pattern, curved-vane design and finished with a durable Geomet coating. This robust construction ensures exceptional strength and longevity, making it a reliable choice for high-performance braking applications.
The G4000 iron composition enhances thermal stability, effectively resisting brake fade under extreme conditions. The straight slots promote efficient heat dissipation while helping to expel debris and gases, ensuring consistent braking performance and prolonging pad life. Meanwhile, the curved vanes optimize airflow, further reducing heat buildup for superior cooling efficiency.
Designed for seamless replacement, the APP Replacement Disc allows users to retain existing components where applicable, making maintenance more cost-effective. Whether upgrading or replacing worn discs, this precision-engineered solution ensures maximum braking reliability and performance.
For optimal results, we recommend inspecting all associated hardware and following manufacturer torque specifications when installing new APP Replacement Discs.
Specifications:
| Manufacturer | APP |
|---|---|
| Bolt Circle Diameter mm | 177,8 |
| Bolt Hole Quantity | 8,00 |
| Disc Diameter (mm) | 309,60 |
| Disc Finish | Straight Slotted |
| Hardware | Hardware not included |
| Disc Height (mm) | 31,75 |
| Disc Side | Right |
| Disc Size | 309x32mm |
| Max Thickness | 31,75 |
| Min Thickness | 30,0 |
| Disc Vane Style | Curved Vane |
| Disc Type | Vented |
| Wide Annulus | No |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
| Drive Array PCD | 8x177,8 |
| Drive Hole Diameter (mm) | Slot |
| Flange Inside Diameter (mm) | 162,0 |
| Flange Thickness (mm) | 8,0 |
| Hat Outside Diameter (mm) | 212,0 |
| Brake Disc Annulus (mm) | 48,85 |
