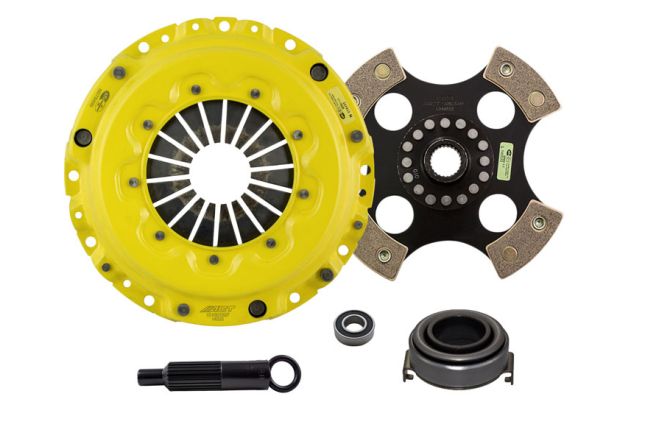

ACT - AI4-HDR4 - HD/Race Rigid 4 Pad

AI4-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Feel:

Light to moderate pedal effort, aggressive engagement, increased gear rattle

Life:

Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear

Quality:

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommendation:

Recommended for race use only

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

What's Included in this kit?

• 4220010 - 4 Pad Rigid Race Disc
• AT88 - Alignment Tool
• H025 - P/PL Heavy Duty
• PB1002 - Pilot Bearing
• RB817 - Release Bearing

• Honda CRX Del Sol 1992-1998 1.6L L4 1590cc VTi (B16A2)
• Honda Integra 1994-2001 1.8L L4 1834cc Type-R (B18)
• Honda Civic 1992-1996 1.6L L4 1590cc VTi (B16A2)
• Honda Civic 1998-2000 1.6L L4 1590cc VTi/Type-R (B16A2/B16B)
• Honda CR-V 1996-2002 2.0L L4 1972cc (B20B)
• Honda Civic 1996-1998 1.6L L4 1590cc VTi/Type-R (B16A2/B16B)
• Honda Civic 1998-2000 1.8L L4 1.797cc VTi (B18C4)
