ACT - AI3-XXR4 - MaXX/Race Rigid 4 Pad
ACT - AI3-XXR4 - MaXX/Race Rigid 4 Pad
SKU:AI3-XXR4
AI3-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Feel:
Heavy to very heavy pedal effort, aggressive engagement, quickest shifts, increased gear rattle
Life:
Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
Quality:
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommendation:
Recommended for race use only
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

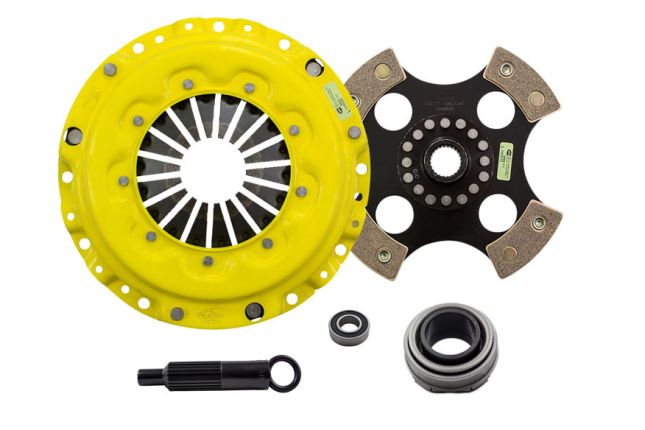

What's Included in this kit?
- 4220010 - 4 Pad Rigid Race Disc
- AT88 - Alignment Tool
- H025XX - P/PL MaXX Xtreme
- PB1002 - Pilot Bearing
- RB837 - Release Bearing
Specifications:
| Manufacturer | ACT |
|---|---|
| Sku Manufacturer | AI3-XXR4 |
| Clutch Disc diameter (mm) | 220 |
| Clutch Pads | 4-Pad |
| Clutch Disc Type | Race disc (Ceramic) |
| Pressure Plate Type | MaXX |
| Spline Count | 24 |
| Spline Size (Inches) | 1-1/32 |
| Torque Capacity (Nm) | 657 |
| Torque Capacity (ft/lbs.) | 485 |
| Torque Capacity Over OE | 162% |
