ACT - AA2-HDSD - HD/Perf Street Rigid
ACT - AA2-HDSD - HD/Perf Street Rigid
SKU:AA2-HDSD
AA2-HDSD kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.
Feel:
Light to moderate pedal effort, smooth positive engagement, increased gear rattle
Life:
Longer friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
Quality:
Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
Recommendation:
Recommended for street and race use
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

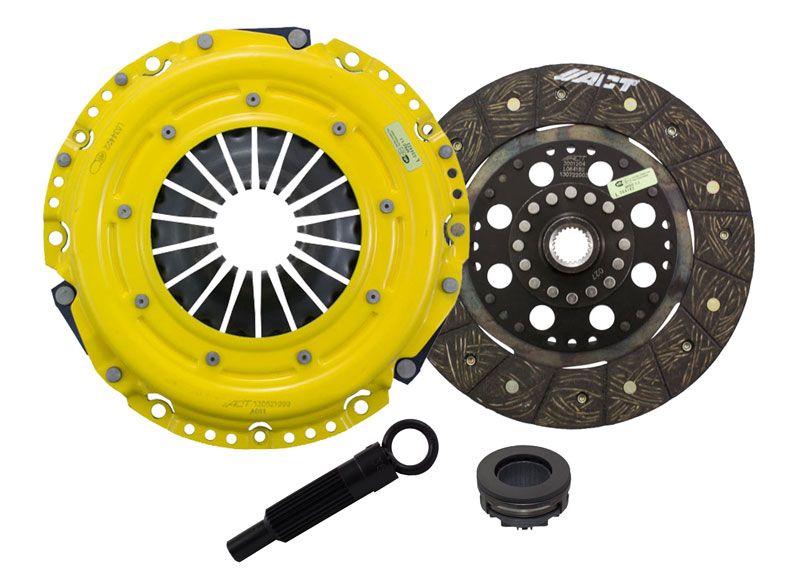

What's Included in this kit?
- 3001204 - Perf Street Rigid Disc
- A011 - P/PL Heavy Duty
- AT36 - Alignment Tool
- RB1301 - Release Bearing
Car Fitments
- Audi S4 B6/8E/8H (2001-2006) 4.2L V8 4163cc (Spring centered disc designed for use with aftermarket single-mass flywheel, Not for use with OE dual-mass flywheel)
- Audi RS4 B7 (2007-2008) 4.2L V8 4172cc (Spring centered disc designed for use with aftermarket single-mass flywheel, Not for use with OE dual-mass flywheel)
- Audi S4 B7/8E/8H (2004-2009) 4.2L V8 4163cc (Spring centered disc designed for use with aftermarket single-mass flywheel, Not for use with OE dual-mass flywheel)
Specifications:
| Manufacturer | ACT |
|---|---|
| Sku Manufacturer | AA2-HDSD |
| Clutch Disc diameter (mm) | 240 |
| Clutch Disc Type | Street disc (Organic) |
| Pressure Plate Type | Heavy Duty |
| Spline Count | 23 |
| Spline Size (Inches) | 15/16 |
| Torque Capacity (Nm) | 691 |
| Torque Capacity (ft/lbs.) | 510 |
| Torque Capacity Over OE | 41% |
